Low Voltage Transformer Foil Winding Machine Foil Sheet Winder
Description of transformer foil winding machine BRJ700
Transformer foil winding machine BRJ700 is a special winder equipment. This kind of foil winding machine is mainly used to wind both copper foil and aluminium foil, which can be make transformer foil winding machine. The transformer foil winding machine is provided with one foil decoiler and two insulation decoiler, which makes the transformer foil winding machine handle one layer of foil conductor and one or two layers of insulation paper. The transformer foil winding machine is also provided with one TIG welding unit, which can weld foil with bus bar together. With control system based on PLC and HMI, it is very easy to operate the foil winding machine.
Quick detail of transformer foil winding machine BRJ700
Technical parameters of transformer foil winding machine BRJ700
Typical standard specifications of transformer foil winding machine BRJ700 are shown below and the transformer foil winding machine can also be manufactured as requested.
|
Foil width: |
200 ~ 700mm |
|
Max. Finished Coil OD: |
Ø800mm |
|
Finished Coil Shape: |
oval, circle and rectangular |
|
Conductor Foil Material OD.: |
Ø1,000mm, maximum |
|
Conductor Foil Material ID.: |
Ø500mm |
|
Foil Decoiler Number: |
1 pc |
|
Foil Decoiler Length: |
750mm |
|
Winding Shaft Size: |
60×60×1050 mm |
|
Welding Mode: |
TIG, 350A |
|
Insulation Decoiler Number: |
2 sets |
|
Insulation Decoiler Shaft: |
Expandable (pneumatic open/close action) |
|
End-fill Strip Feeder: |
6 pcs |
|
Edge Alignment System: |
Photoelectric sensing |
|
Control System: |
PLC |
|
User Interface: |
10inch (254mm) touch screen |
|
Counting Range: |
0 - 9999.9 |

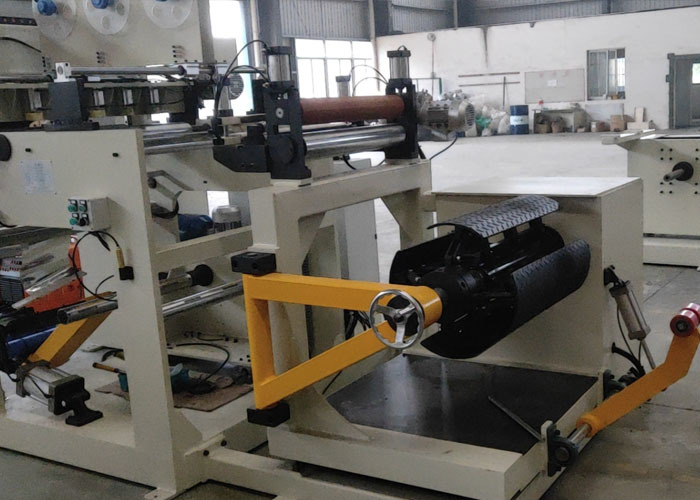

Fig 1: Transformer foil winding machine BRJ700's front view
Fig 2 :Transformer foil winding machine BRJ700's side view
