Automatic Reactor Coil Winder Machine Copper Foil Winding Machine
Quick details of copper foil winding machine BRJ800-2-2
l Two chucks
l Foil material ID 500mm
l Foil material OD 1000mm, maximum
l Maximum winding speed 24rpm
l Winding power 11kw
l TIG welding
Description of copper foil winding machine BRJ800-2-2
Copper foil winding machine BRJ800-2-2 is a professional winder equipment, which is mainly used to wind reactor coils and other similar products. With two chucks, the copper foil winding machine can clamp the core and wind the foil on the core directly.The copper foil winding machine is provided with two foil decoilers, which makes the foil winding machine can handle one or two layers of foil at the same time. Moreover, the foil winding machine can also handle one or two layers of insulation paper with two insulation decoilers. The copper foil winding machine features slow starting, smooth running, high torque and easy operation, etc.
Technical parameters of copper foil winding machine BRJ800-2-2
Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below and the copper foil winding machine can also be manufactured as requested.
|
Foil width: |
250 ~ 800mm |
|
Max. Finished Coil OD.: |
Ø800mm |
|
Finished Coil Shape: |
Round, Rectangular and Oval |
|
Conductor Foil Material: |
Copper or Aluminum foil |
|
Al Foil Thickness: |
0.3 ~ 3.0 mm |
|
Cu Foil Thickness: |
0.2 ~ 2.0 mm |
|
Foil Decoiler Number: |
2 sets |
|
Foil Decoiler Diameter: |
Ø 480 ~ 520mm |
|
Max. Coil Weight: |
1,000KG |
|
Motor Power: |
11KW |
|
Winding Speed: |
0 ~ 24 rpm |
|
Welding System: |
TIG |
|
Insulation Decoiler Number: |
2 sets |
|
Edge Alignment System: |
Photoelectric sensing |
|
Control System: |
PLC |
|
Counting Range: |
0 ~ 9999.9 |

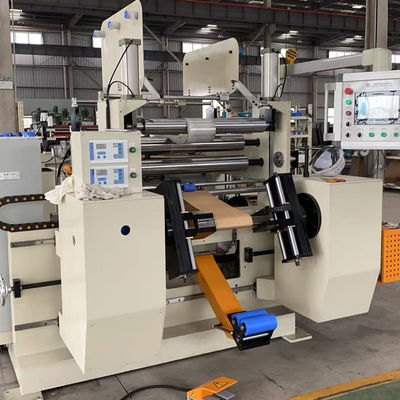

Fig 1: Copper foil winding machine BRJ800-2-2's front view

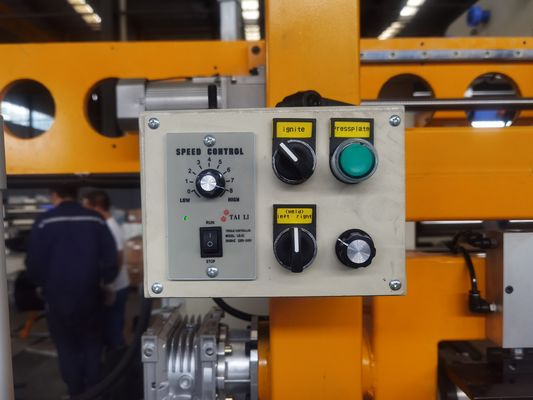

Fig 2: Copper foil winding machine BRJ800-2-2's back view
