Name: Automatic Wire Coiling Machine Transformer Coil Winding Machine
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: ZPX600
Price: 11,500.00 USD
Availability: InStock

特徴ギャラリー製品の説明見積依頼

特徴

仕様

プロダクトame: コイル巻き機

使用法: ワイヤーコイルを作る

モーター出力: 4KW

回転速度: 0 | 200rpm

ワイヤー材料: CuワイヤーまたはAlワイヤー

ワイヤタイプ: フラットまたは丸いワイヤー

色: リクエストとして

保証: 12ヶ月

ハイライト:

600mm Max Winding Width Automatic Coil Winding Machine

5X12mm Flat Wire Transformer Coil Winding Machine

Ø0.3 ~ 5.0mm Round Wire Wire Coiling Machine

基本情報

起源の場所: 中国

ブランド名: STT

証明: CE

モデル番号: ZPX600

お支払配送条件

パッケージの詳細: 耐航性のある梱包

受渡し時間: 35日

支払条件: T/T、L/C

供給の能力: 年間100セット

ギャラリー

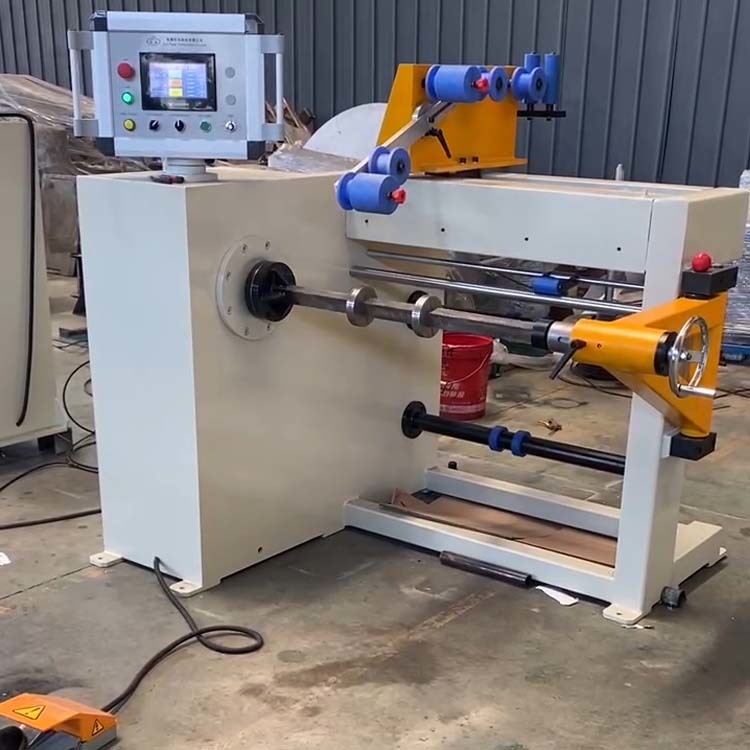

Automatic Wire Coiling Machine Transformer Coil Winding Machine

製品の説明

Automatic Wire Coiling Machine Transformer Coil Winding Machine

Introduction of Automatic Coil Winding Machine ZPX600

The ZPX600 is a professional wire coil winder designed for transformer coils and similar applications. This versatile machine handles both copper and aluminum wire with precision. Its servo motor-driven wire guide ensures accurate movement and automatic wire laying during operation. Equipped with PLC and HMI controls, the ZPX600 offers high automation and user-friendly operation, featuring slow starting and smooth running capabilities.

Main Features

Slow starting mechanism
Smooth running operation
Strong pulling force
High reliability and durability
Precision accuracy
Full-featured functionality

Technical Specifications

Parameter	Value
Center Height	900mm
Square Shaft Size	40x40x900mm
Winding Width	600mm max.
Servo Motor Power	0.75kw
Winding Speed	0 ~ 200 rpm
Max. Flat Wire Size	5X12mm
Round Wire Capacity	Ø0.3 ~ 5.0mm
Finished Coil OD.	Ø600mm max
Counting Mode	5-digit counting
Counting Turn Range	0 - 9999.9
